Q2i

FingerTec Q2i is a premium biometrics security device with advanced time attendance and access control features suitable for medium to large organizations. Q2i can provide your company with accurate and reliable data at all times providing convenience and effectiveness all at once from one system, and it is has been made versatile with many customizable features. Connect Q2i to FCC data storage and cloud-based attendance system subscriptions, TimeTec TA to totally eliminate manual data download process for effective operation.

Description

  • A secure device for a secure workplace
  • Greater capacity perfectly adequate for your needs: 200,000 transactions / 10,000 fingerprints
  • Robust & heat-resistance made to last

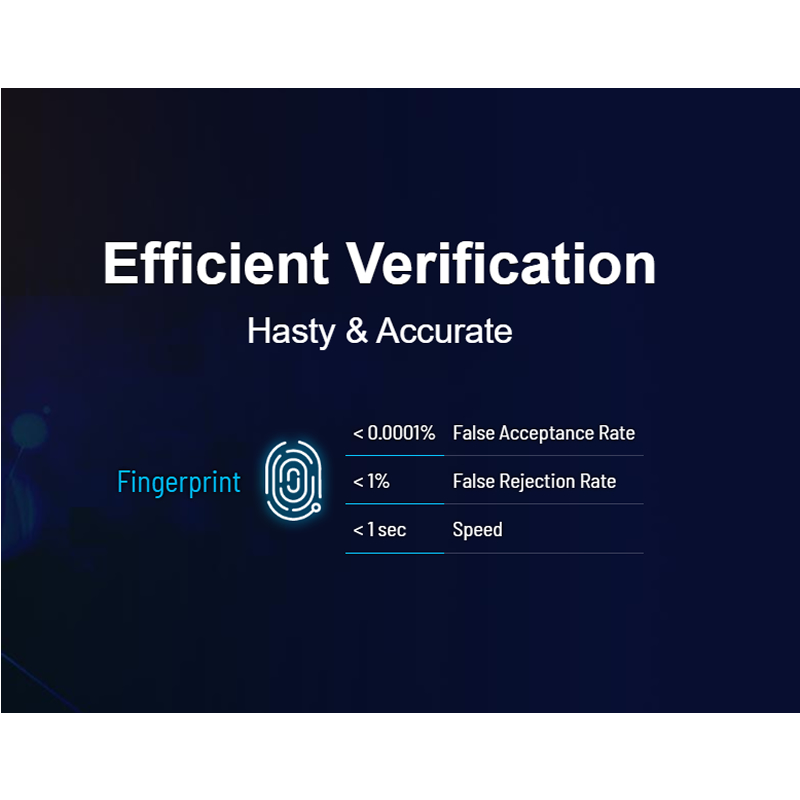

  • Efficient verification: hasty & accurate

Additional information

SURFACE FINISHING

Acrylonitrile butadiene styrene (ABS)

TYPE OF SCANNER

Non-coated optical scanner

PROCESSOR

800 MHz

MEMORY

256 MB flash memory & 64 MB SDRAM

ALGORITHM

BioBridge VX 9.0 / VX 10.0

PUSH TECHNOLOGY

Yes

PRODUCT DIMENSION (L X W X H), mm

200 x 56 x 160

STORAGE

Fingerprint templates: 10,000
Transaction logs: 200,000

ENROLLMENT & VERIFICATION

Methods: Fingerprint (1:1, 1:N), password
Recommended fingerprint per user ID: 2
Fingerprint placement: Any angle
Verification time (sec): < 1
FAR (%): < 0.0001
FRR (%): < 1

COMMUNICATIONS

Method: TCP/IP, RS232, RS485, USB Disk
Baud rates: 9600, 19200, 38400, 57600, 115200
Wiegand: 26-bit input/output

OPERATING ENVIRONMENT

Temperature (°C): 0 ~ 45
Humidity (%): 20 ~ 80
Power input: DC 12V 3A

TIME ATTENDANCE

Siren: Built-in (Optional-External)
Work codes: Yes

MULTIMEDIA

Voice: Yes
Display: 3.5” 65k colour TFT screen
Photo-ID: Yes
Short messaging: Yes

ACCESS CONTROL

EM lock driving output: DC 12V 3A/ Relay output
Alarm output: NO/NC
Anti-passback: Yes

VOICE / DISPLAY LANGUAGE (TERMINAL)

English (Standard), Arabic, Chinese (Simplified/Traditional), Indonesian, Portuguese (Portugal)and Spanish.
Other languages are available upon request.
