CPad Pay

  • Pad and Payment Integrated: Say goodbye to the complications and compatibility issues of external payment devices.
  • Enhanced Efficiency: Complete ordering, payment, and SaaS management with just one device.
  • Reliable and Worry-Free: With an all-in-one design, we’ve eliminated problems like loose cables and device compatibility.
  • Ultra-thin, bezel-less, and lightweight design: The 11″ model weighs about 586g / only 10.95mm thick.
  • 11″ Display for convenient information at a glance: 1920×1200 FHD resolution for crystal-clear details in product, ordering, and payment information.
  • Seamless works with desktop terminals: Unlock the payment experience at your checkout counter.
Categories: ,

Description

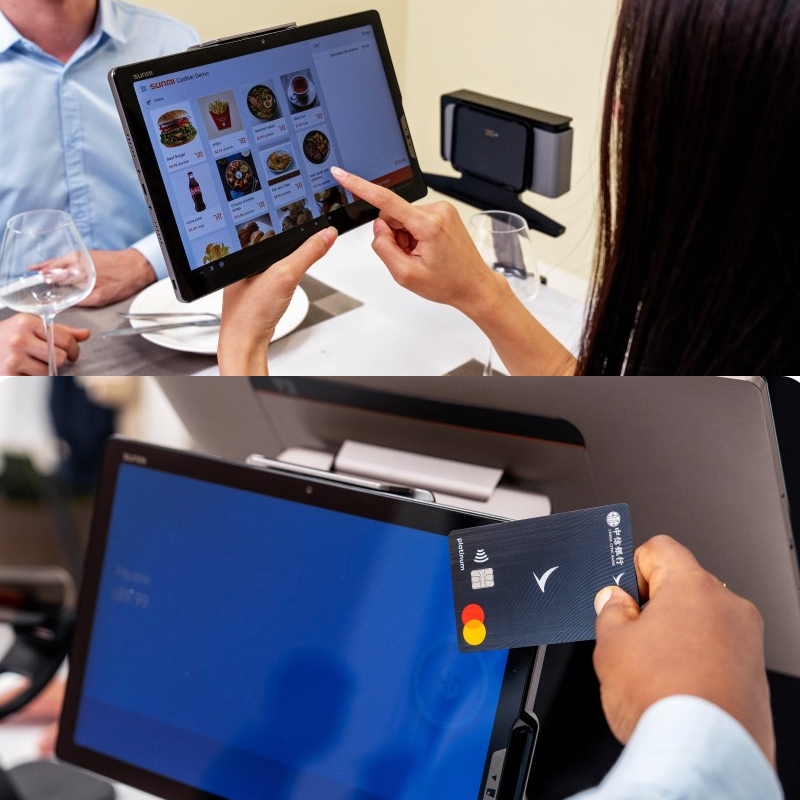

  • Restaurant: CPad PAY excels in restaurant mobile & self-service ordering. Its 11-inch FHD screen, powerful performance, and versatile accessories enable seamless order-to-payment processing, delivering a new F&B service experience.
  • Clothing Boutique: CPad PAY serves as both an in-store guide device and POS secondary display, addressing multi-scenario retail needs.
  • Personal Shopper Boutique: With compact design and versatile base, CPad PAY seamlessly integrates into limited counter space. The free-flip screen design allows a single device to elegantly handle both product display and checkout processes, providing a simple yet efficient solution for boutique retail.
  • Bank: In smart bank branches, customers can complete various personal transactions using CPad PAY. Fingerprint verification enables one-tap confirmation, ensuring a fully self-service, secure, and convenient experience.

Additional information

Security Model

T670
CPU

Octa-core, up to 2.4GHz
OS

SUNMI OS 4.0 (Based on Android 13)
Memory

4GB RAM + 64GB ROM
8GB RAM + 128GB ROM(Optional)
Extended Micro SD Card Slot Up to 512GB
Displays

11'' WUXGA, 1920*1200 Pixels, IPS
Capacitive Multi-touch Screen
Buttons

1*Power button (Fingerprint ID)
1*Volume button
1*Function button
Card Slots

1*Nano SIM+1*Micro SD +1*PSAM
2*Nano SIM +1*PSAM(Optional)
eSIM

Supported (Optional)
*eSIM will replace 1 SIM in 2 SIM case
Ports

1*Type-C on the left, USB OTG
1*Type-C at the bottom, USB host only
6*Pogo PIN at the bottom for connecting accessories
1*Kensington
Cellular

4G/3G/2G
Wi-Fi

5GHz/2.4GHz
IEEE 802.11 a/b/g/n/ac
Hyper Wi-Fi

Supported (Optional)
Bluetooth

Bluetooth 5.1, Support BLE
Positioning

GPS/Glonass/Beidou/Galileo
Cameras

5MP FF Front Camera +13MP AF Rear Camera
Scanner

Professional 2D Scan Engine (Optional)
Magstripe Reader

Support 1/2/3 track, Bi-direction, comply with ISO 7810/7811 standards
IC Card Reader

Dual-Chip Reader
Support smart IC card, comply with ISO 7816 standard
NFC

Tap on screen
Support ISO/IEC 14443 TypeA/B, Mifare, Felica, ISO 15693 compliant
Fingerprint Reader

External (Optional)
Audio

1*Speaker
2*Microphone
Battery

Removable Lithium Polymer Battery
3.87V/8000mAh
Sensors

Gravity sensor
Light sensor
Proximity sensor
Power Adapter

Input: 100V-240V AC
Output: 9V2A DC
Dimensions(L*W*H)

265.6*173.55*10.95 mm
Net Weight

586g(Including battery)
Protection

IPX2
Environment

Operating temperature: -10°C~50°C
Storage temperature: -20℃~70℃
Operating Humidity: 5%~95% non-condensing
Certifications

PCI PTS 6.x, EMV L1 & L2, EMV Contactless L1, Visa payWave, MasterCard PayPass, UPI Quickpass, Amex ExpressPay, Discover D-PAS, JCB, TQM, FCC, ISED, CE, CB, RoHS, WEEE, REACH
