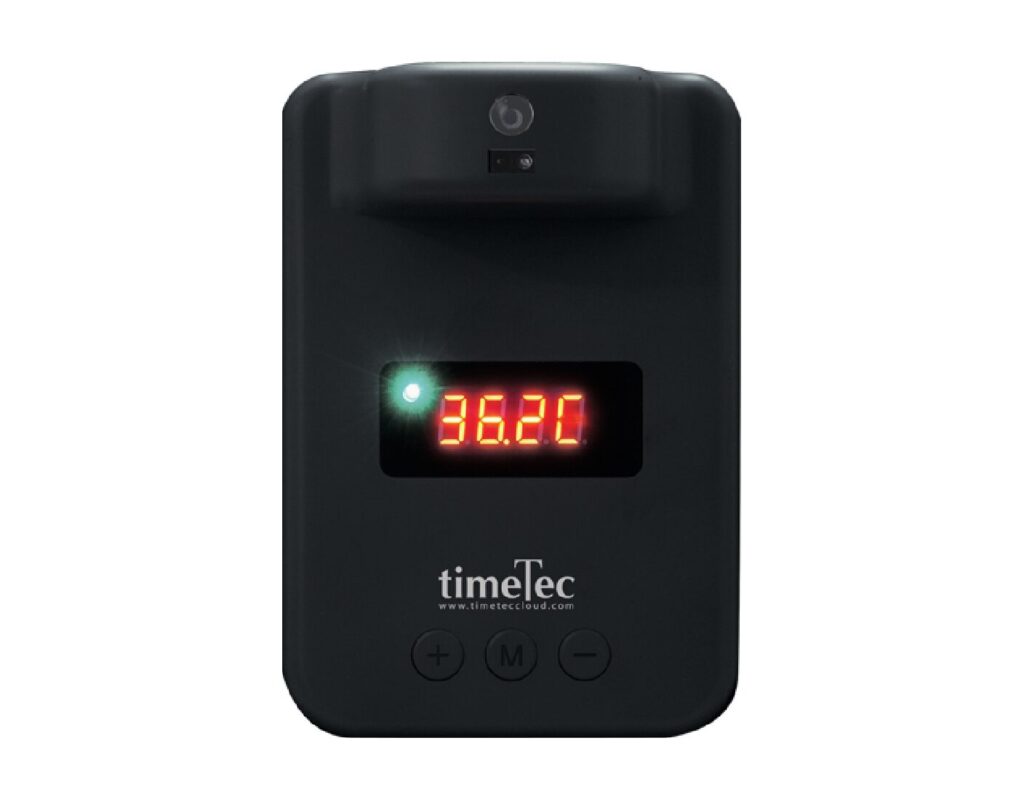

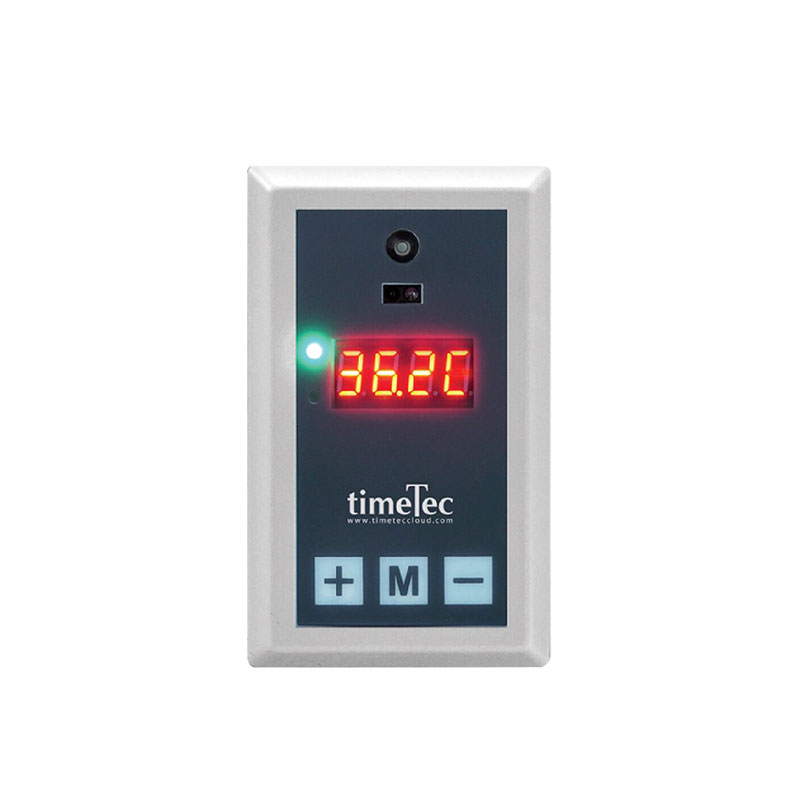

BoTemp-Y is an automated Smart Body Temperature Reader made receptive white-grey to a 5 to 10 cm distance body temperature sensing through palm reading.
This reader is a modest design that comes with an affordable price, delivering its service with easy integration with biometrics and card readers.
TimeTec BoTemp-Y is unique as it can work as a standalone reader relay interface, or it can function as a plug-and-play solution to biometric devices. Acquiring the most economical option and accommodating user’s comfort by its efficiency.
| Model | BoTEMP-Y |
|---|---|
| PRODUCT DIMENSION (mm) | 120 x 100 x 22 |
| WEIGHT (gm) | 200 |
| MEASURING DISTANCE (cm) | 5 – 10 |
| MEASURING TIME (second) | <0.5 |
| SENSOR | WTTS001 |
| ACCURACY | +/-0.2°C |
| WORKING AMBIENT TEMPERATURE | 5°C ~ 44°C |
| MEASURED TEMPERATURE RANGE | 35°C ~ 42.9°C |
| DISPLAY | Infrared LED |
| OPERATING VOLTAGE | 5V-12V DC |
| INTERNAL RELAY | Yes |
| ALARM | Yes (external available), 5V-12V Output |
| CERTIFICATE | CE/FCC |
| INSTALLATION | Wall-mounted |
