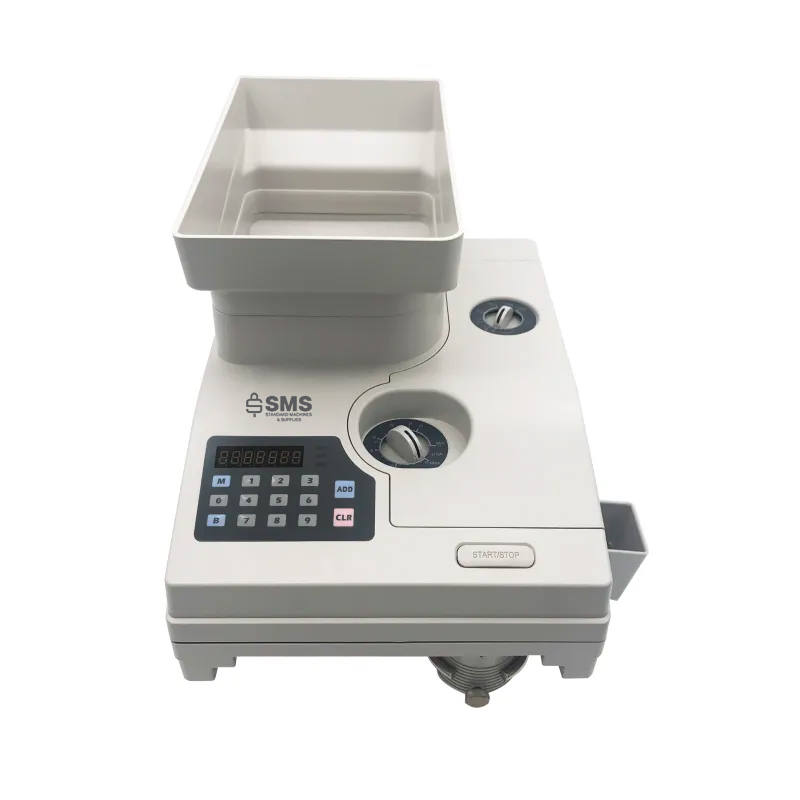

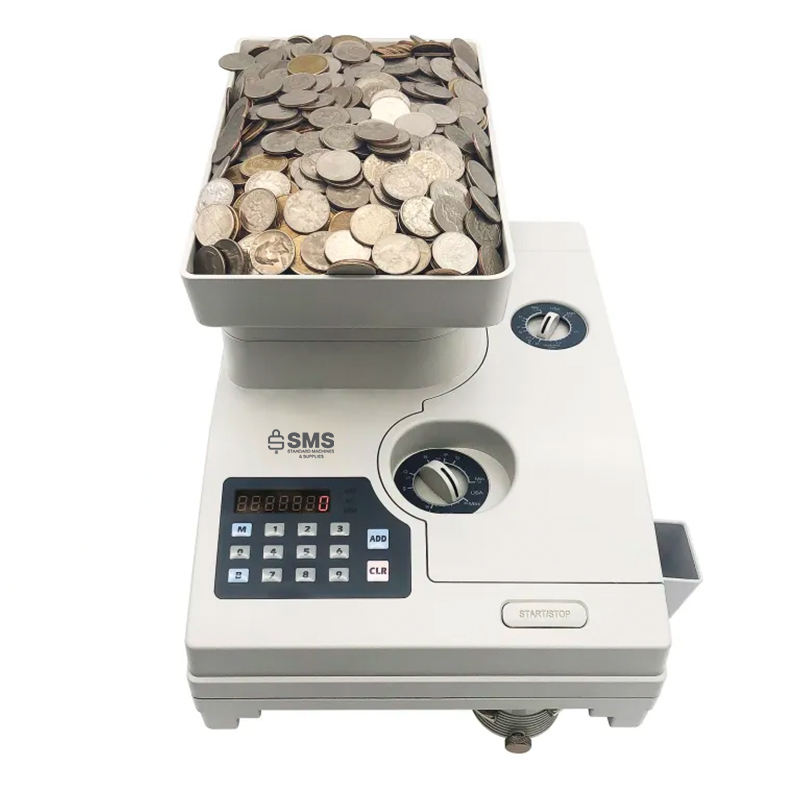

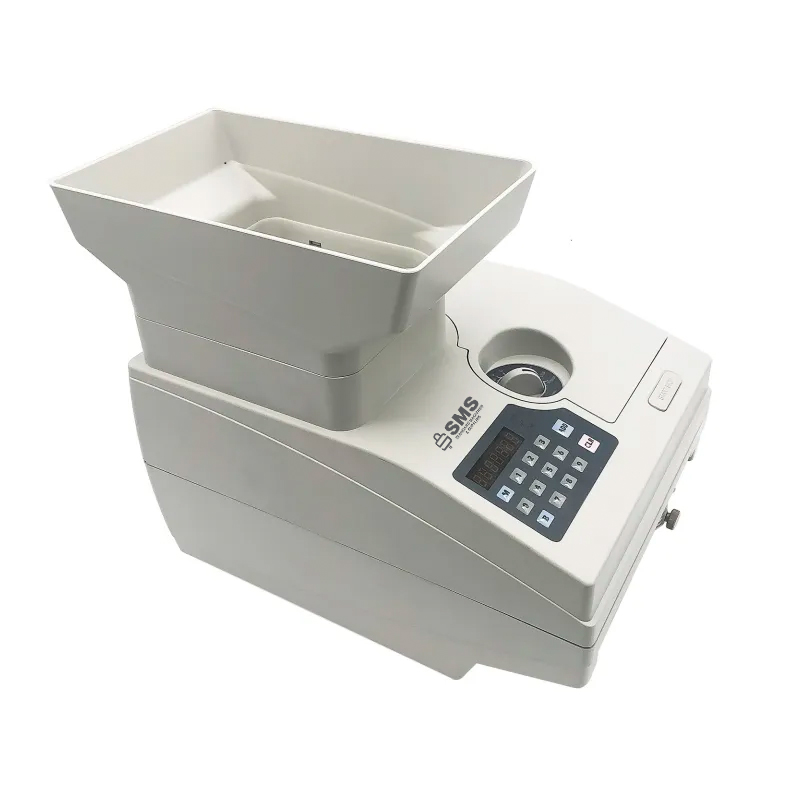

Coin counter cs-3300

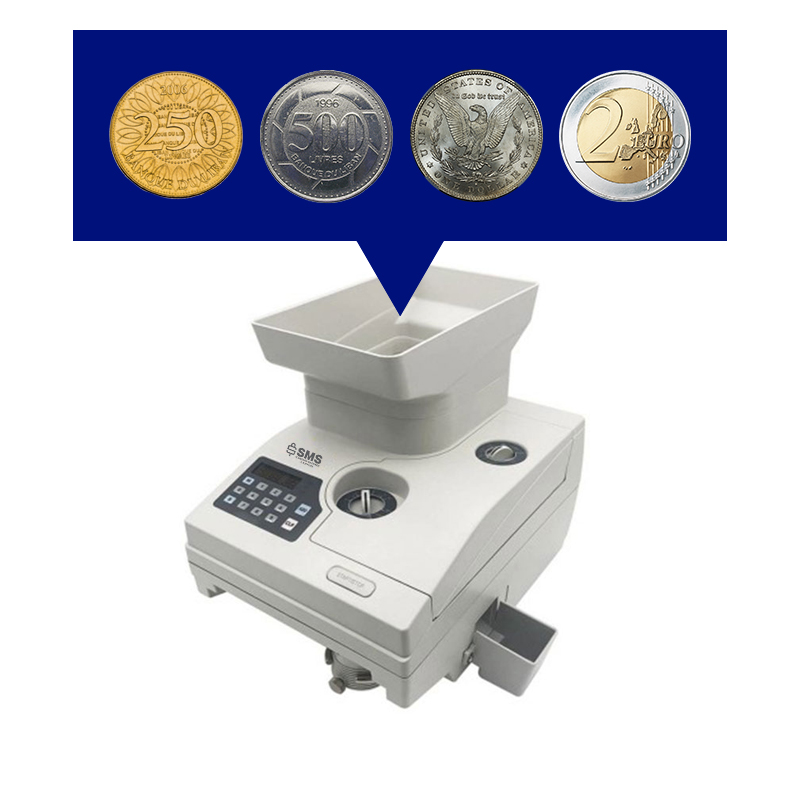

High speed coin counter and sorter. HCS-3300 is a heavy-duty and high speed coin counting machine, suitable for worldwide round coins and tokens. It is widely used in banks, supermarkets,post office, casinos .etc



Category:

Description

  • Standard extended hopper: The standard extended hopper increase the hopper capacity to be 18000 coins
  • User friendly key panel: The user friendly design of key panel is easy for customer operation in batch, accumulation counting mode.
  • Easy maintenance: The thickness adjusting assembly can be opened completely to remove any jammed coins; the counting passage and hopper can be opened completely
  • Durable, heavy-duty design: Every part of HCS-3300 is designed for heavy-duty use and easy operation
  • Memory backup function: With this optional function, the user do not need to worry about repeat counting in case of electricity off

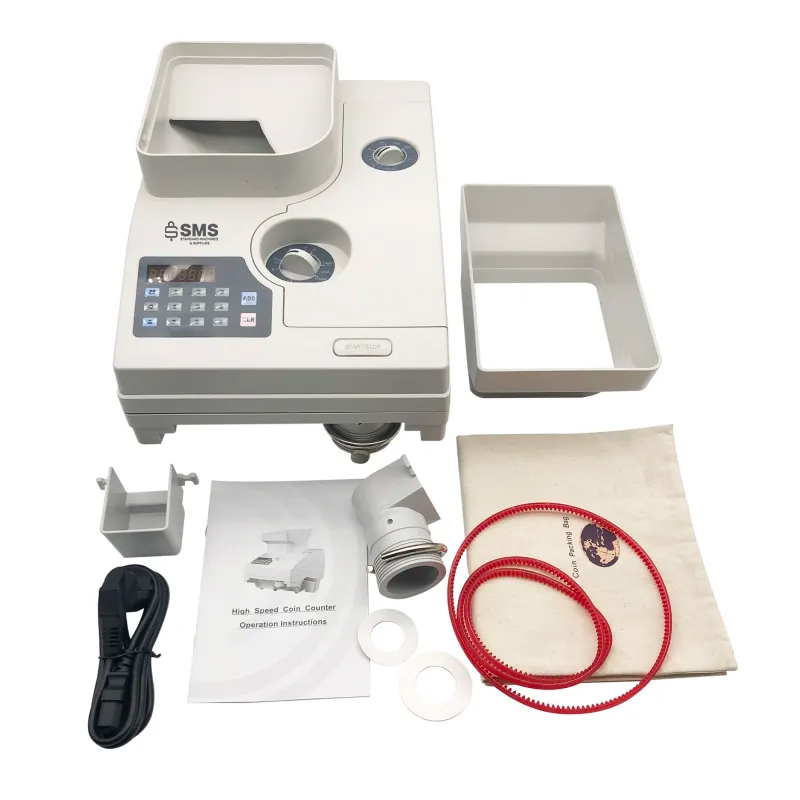

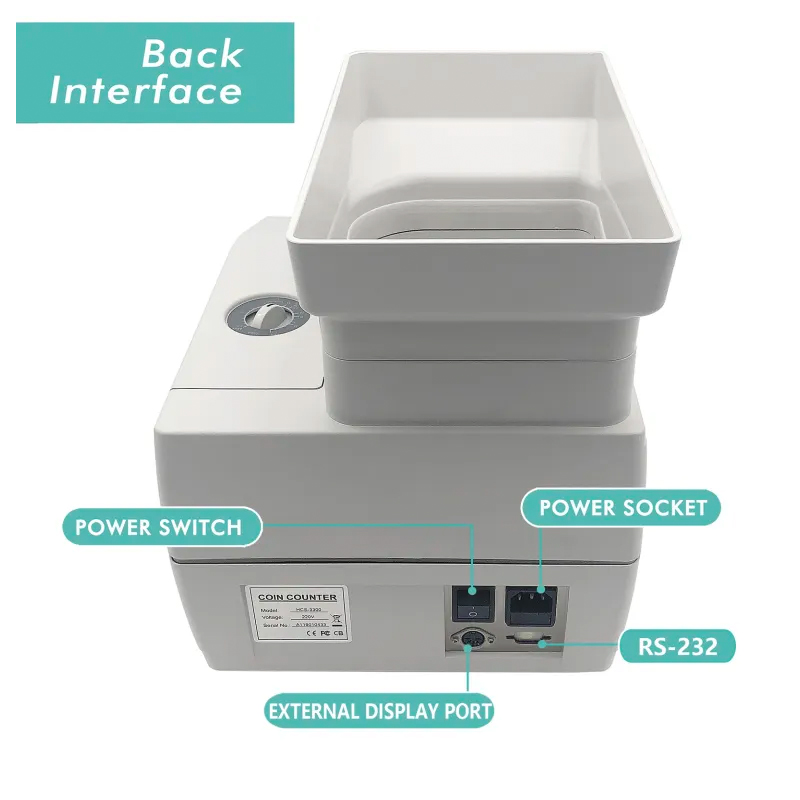

  • Various options: This machine can be connected with external display, PC and adapted with our coin tube set or cotton bags
  • Counting result storage function: The user can store counting results for 6 different denominations into the corresponding 6 storage channels, then read and display

Additional information

Counting Speed

2300 Coins/Min. (for coins with a diameter of 15mm and thinckness of 1mm)
Hopper Capacity

12000 coins (for coins diameter of 15 mm and thickness of 1 mm.)
Countable Coin Size

Diameter :14 to 34 mm (Adjust coin qty. adjusting gate to minimum for diameter ＜24mm; to middle for diameter 24~25mm; to maximum for diameter ＞25mm)
Max. Counting Display

9999(Batch Display)
Counting Mode

Accumulation Counting Mode
Power Consumption

85 W (During operation)
Power Requirements

AC 120V ± 10%, 60Hz or AC 220V ± 10%, 50Hz
Environment For Storage

-30º C — +80º C
Environment For Use

0º C — +40º C
Machine Dimension(LxWxH)

334x270x387mm
Net Weight

11.4kg
Transportation Packing

2 unit/carton
Carton Dimension

690x560x320mm
Gross Weight/carton

28kg/ctn
